Model No.: EWD8000
Brand: OEM ORDER ACCEPTABLE
Origin: CHINA
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it
EWD SERIES Winch series are perfect two-speed Electric Winches with Max. Pulling force of 5,500 lbs at high speed. Speed shift and clutch control could be engaged simultaneously to bring more convenience to users.

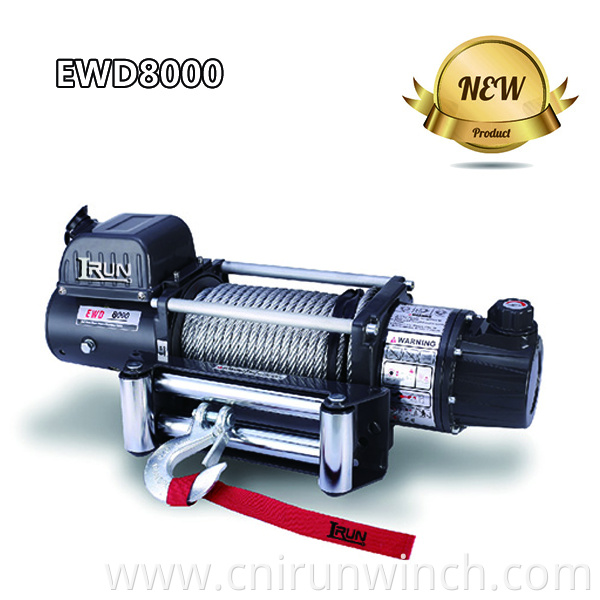

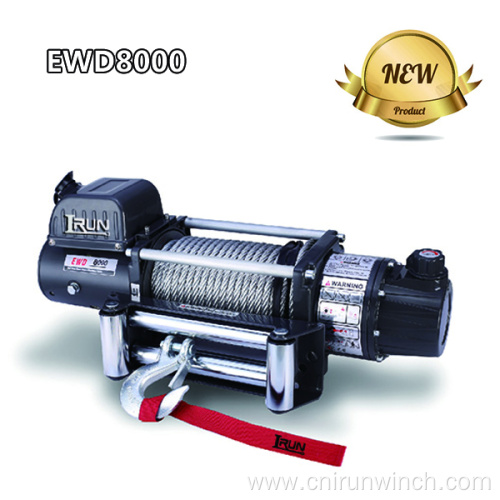

Dual Speed Electric Recovery Winch 8000 Lbs With New Design Clutch Item No. EWD8000
This winch features a rated pulling capacity of 8000lbs with two optional speeds for actual operation. The speed shift and clutch control
is our patent design.
Features:
EWD 8000
| Specification: | ||||
| Rated line pull | 8000 lbs (3629 kg) | |||
| Motor: Series wound | 12V: Input: 3.4kW / 4.6hp | |||
| Output: 2.0kW / 2.7hp | ||||
| 24V: Input: 3.1kW / 4.2hp | ||||
| Output: 2.6kW / 3.5hp | ||||
| Gear reduction ratio | 267:1 (Low speed); 86:1 (High speed) | |||
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) | |||
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) | |||
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 | |||
| Low Speed | High Speed | ||||||||
| Line Pull Lbs.(kg) | Line Speed ft/min(m/min) | Current A | Line Pull Lbs.(kg) | Line Speed ft/min(m/min) | Current A | ||||
| 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | ||
| 0 | 28.9(8.8) | 19.7(9.2) | 70 | 50 | 0 | 78.7(24.0) | 82(25.0) | 75 | 60 |
| 4000(1814) | 9.8(3.0) | 10.5(3.2) | 190 | 80 | 2000(907) | 25.9(7.9) | 22.3(6.8) | 245 | 115 |
| 6000(2722) | 8.6(2.7) | 9.2(2.8) | 230 | 100 | 3000(1391) | 20.3(6.2) | 19.0(5.8) | 300 | 135 |
| 8000(3629) | 7.2(2.0) | 7.9(2.4) | 280 | 130 | 4000(1814) | 16.4(5.0) | 17.1(5.2) | 365 | 170 |
| Line pull and rope capacity in layer | ||
| Layer of cable | Rated line pull Lbs. (kg) | Total rope on drum ft (m) |
| 1 | 8000(3629) | 20.0(6.1) |
| 2 | 6529(2962) | 44.3(13.5) |
| 3 | 5515(2502) | 72.0(22.0) |
| 4 | 4773(2165) | 95.1(29.0) |

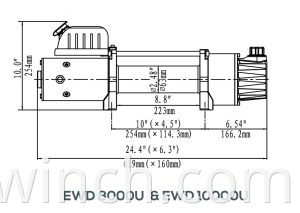

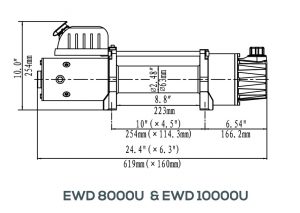

| ITEM | EWD 8000U | EWD 8000S | EWD 8000F |
| Overall dimensions | 24.4″×6.3″×10.0″ | 24.4″×6.3″×11.1″ | 24.4″×6.5″×9.9″ |
| (L×W×H) | 619mm×160mm×254mm | 619mm×160mm×283mm | 619mm×166mm×251mm |
| Net weight (Ibs/kg) | 77.2lbs / 35.0kg | 83.8lbs / 38kg | 88.2lbs / 40kg |
