Model No.: HWN15000U
Brand: OEM ORDER ACCEPTABLE
Origin: CHINA
Power Source: Hydraulic
Application: Auto
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

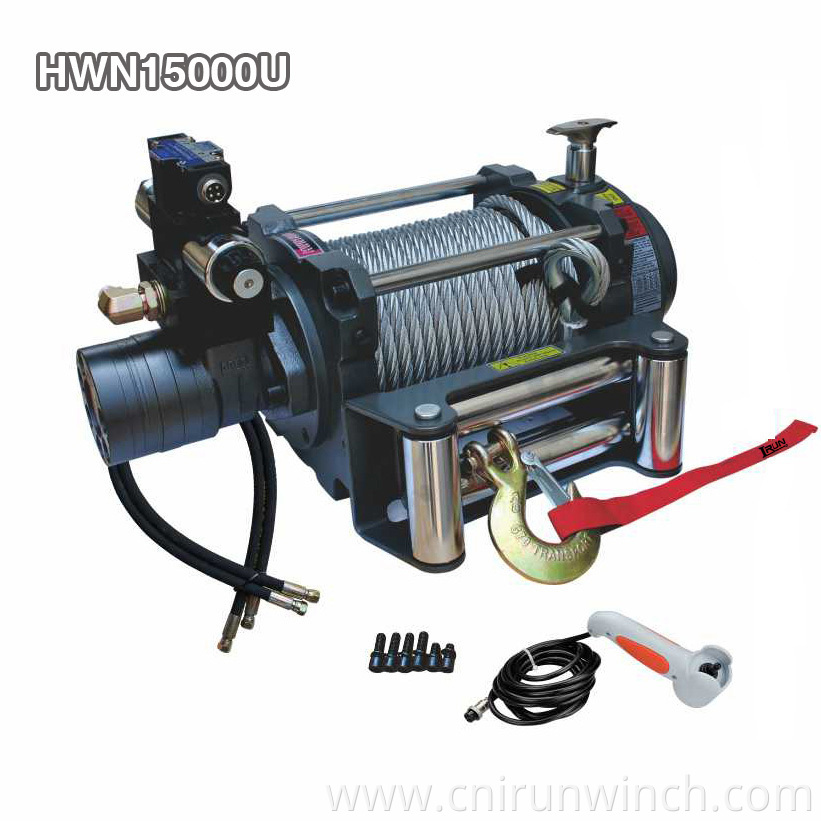

Heavy Duty Hydraulic Winch 15000 lb Item NO. HWN15000U
The winch has 15000 lb pulling capacity.
The winch is equipped with a heavy duty automatic braking action for safe operation, and a patent hardened steel two stage planetary gear reducer provides high efficient transmission. Each winch comes with wire rope, roller fairlead and winch accessories.
Features:
1. Free spooling clutch: Manual, Air clutch or Manual and Air
2. Automatic screw cone braking action
3. Specially designed differential gearing for heavy duty
4. Specially designed shape for convenient installation and good appearance
5. Available for engineering use
6. DC 12V or DC 24V power drive optional
7. SWR tensioner available
8. Can not be used for lifting work
HWN15000U
| SPECIFICATION | |
| Rated line pull | 15000 lbs (6804kgs) |
| Motor: permanent magnet | 80ml/r |
| Oil Flow | 5~60L/min |
| Pressure | 13Mpa |
| Gear reduction ratio | 33.4:1 |
| Cable (Dia.× L) | Ø15/32 “×87 ‘ (Ø12mm×26.5m) |
| Drum size (Dia.× L) | Ø3.5″×8. 5″ (Ø89mm×217mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5.0) | 1.6 (0.5) |
| 5000(2268) | 4.3(623.7) | 2.6(10.0) | 3.3(1.0) |
| 10000(4536) | 8.7(1261.8) | 5.3(20.0) | 6.6(2.0) |
| 12000(5443) | 10.0(1450.3) | 7.9(30.0) | 9.8(3.0) |
| 15000(6804) | 13.0(1885.4) | 15.9(60.0) | 19.7(6.0) |
| Layer of cable | Rated line pull lbs(kgs) | Total rope on drum ft (m) | |
| 1 | 15000(6804) | 18.0 (5.5) | |
| 2 | 12120(5498) | 40.7(12.4) | |
| 3 | 10168(4612) | 65.9(20.1) | |
| 4 | 8757(3972) | 86.9(26.5) |
| ITEM | HWN15000A | HWN15000U | |
| Overall dimensions | 21.5″×8.9″×10.3″ | 21.5″×8.9″×11.5″ | |
| (L×W×H) | 547mm×226mm×262mm | 547mm×226mm×292mm | |
| Net weight (Ibs) | 151.5 | 152 | |
| (kgs) | 68.5 | 68.8 |
Overall Dimensions 21.0″ x 8.9″ x 11.5″
(L x W x H) 534mm x 226mm x 292mm
Net Weight 68.8 KGS
