Model No.: EWN15000U
Brand: OEM ORDER ACCPTABLE
Origin: CHINA
Power Source: Electric
Application: Atv/Utv
Voltage: 24v, 12v
| Selling Units | : | Bag/Bags |
| Package Type | : | EXPORT CARTON |
The file is encrypted. Please fill in the following information to continue accessing it

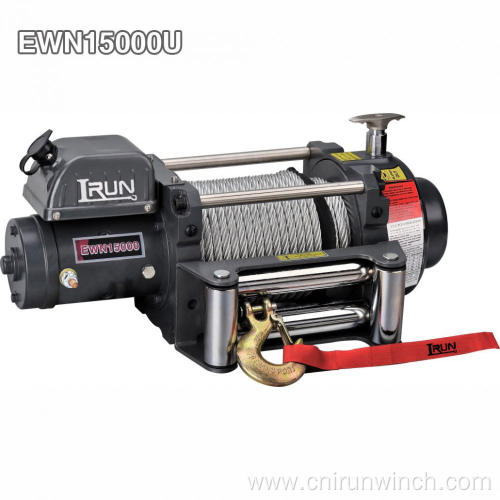

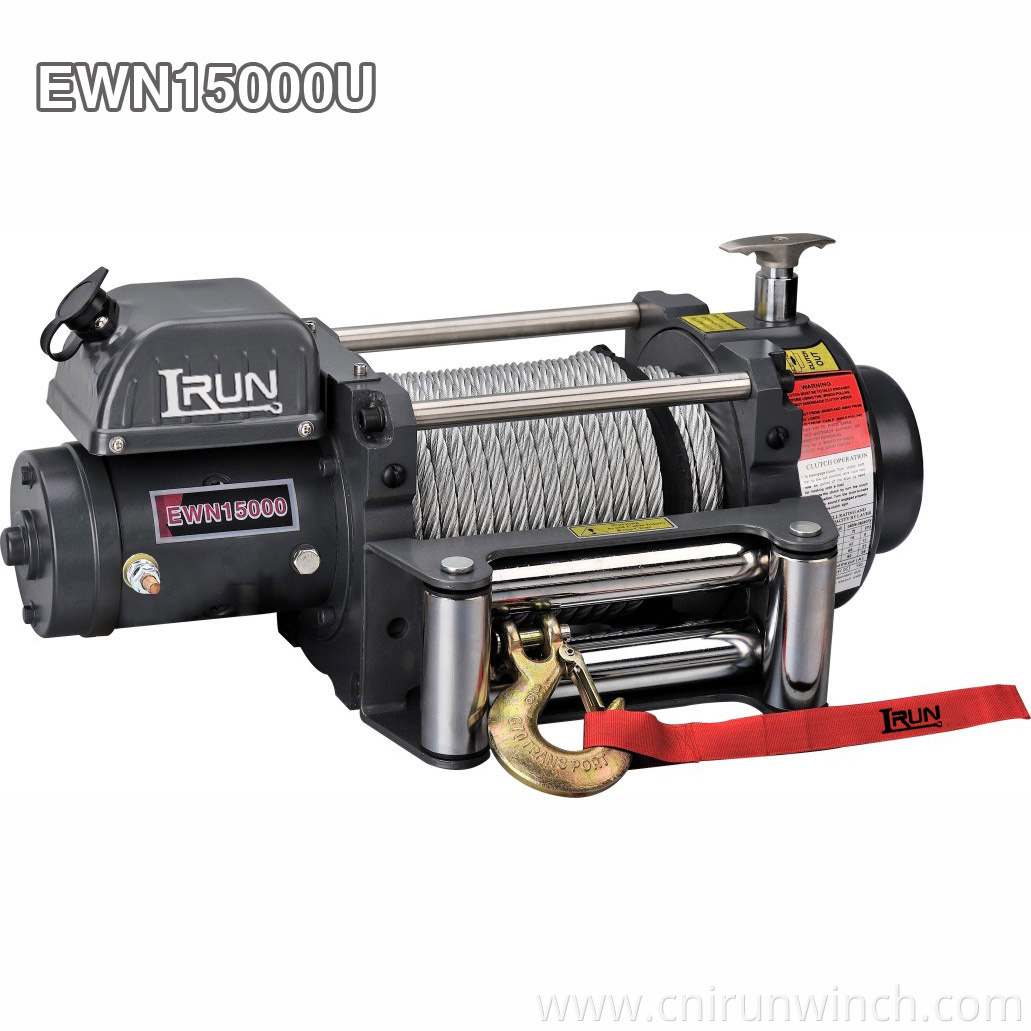

15000 lbs Heavy Duty Electric Winch for Severe offroad or recovery Item No. EWN15000U.
our Heavy Duty Winch 15000 Lbs that comes with patent design three stage planetary gear reducer.
This winch as a classic representative of heavy duty electric winch EWN Series is widely applied for severe offroad or engineering recovery use because of its more durable working life, faster line speed and better efficient transmission.
Features:
1.) Free spooling clutch
2.) Automatic screw cone braking action
3.) Series wound motor
4.) Patent design three stage planetary gear reducer
5.) Specially designed shape for convenience of installation and good looking
6.) Remote control through control box and switch
7.) Wireless remote control available
8.) DC 12V or DC 24V Power drive optional
9.) SWR tensioner available
EWN15000
| SPECIFICATION | |
| Rated line pull | 15000 lbs (6804 kgs) |
| Motor: permanent magnet | 12V:Input: 5.4kW / 7.2hp;Output: 2.8 kW /3.8hp 24V:Input: 6.0 kW / 8.0hp;Output: 3.5 kW /4.7hp |
| Gear reduction ratio | 446:1 |
| Cable (Dia.× L) | Ø7/16“×83.7‘ (Ø11mm×25.5m) |
| Drum size (Dia.× L) | Ø3.5“×8.5” (Ø88mm×217mm) |
| Mounting bolt pattern | 10“×4.5” (254mm×114.3mm) 4-M12 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull lbs (kgs) | Line Speed Ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs(kgs) | Total Rope On Drum ft (m) | ||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 15000(6804) | 19.7(6.0) | |
| 0 | 13.1(4.0) | 16.1(4.9) | 90 | 48 | 2 | 12000(5443) | 42.7(13.0) |
| 8000(3629) | 6.6(2.0) | 7.2(2.2) | 270 | 140 | 3 | 10100(4581) | 68.9(21.0) |
| 10000(4536) | 4.9(1.5) | 6.6(2.0) | 320 | 180 | 4 | 8720(3955) | 83.7(25.5) |
| 12000(5443) | 4.6(1.4) | 5.9(1.8) | 380 | 200 | |||
| 15000(6804) | 4.3(1.3) | 5.6(1.7) | 450 | 250 | |||
| ITEM | EWN15000U | EWN15000S | ||
| Overall dimensions (L×W×H) | 23.3″×8.9″×10.3″(12V) 593mm×226mm×262mm(12V) | 23.3″×8.9″×12.4″(12V) 593mm×226mm×316mm(12V) | ||
| 22.7″×8.9″×10.3″(24V) 576mm×226mm×262mm(24V) | 22.7″×8.9″×12.4″(24V) 576mm×226mm×316mm(24V) | |||
| Net weight (lbs) | 162.9 73.8 | 163.3 74.1 | ||
| (kgs) | ||||
Overall Dimensions 23.3″ x 8.9″ x 10.3″
(L x W x H) 593mm x 226mm x 262mm
Net Weight 73.8 KGS
