Model No.: HWX9000A
Brand: OEM ORDER ACCEPTABLE
Origin: CHINA
Power Source: Hydraulic
Application: Atv/Utv, Auto
| Package Type | : | EXPORT CARTON OR PALLET PACKING |
The file is encrypted. Please fill in the following information to continue accessing it
Our Hydraulic Winches provide you with a continous duty solution to your winch requirements.Designed with the thoughest commercial applicaitonin mind,all winches feature total reliability to hand sustained pulls.

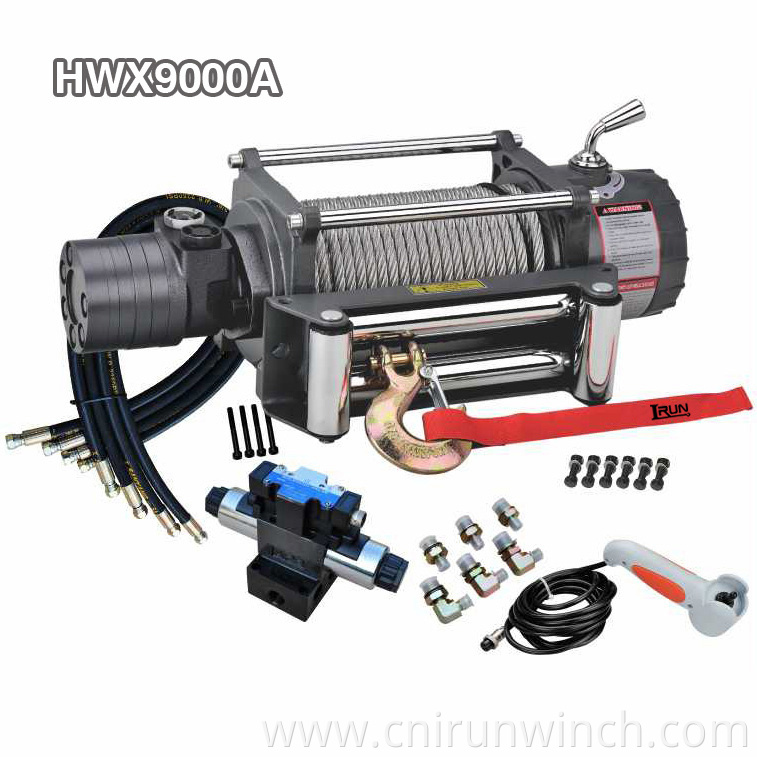

9000 lbs Hydarulic Winch Item No. HWX9000A with full steel reducer gear and patented design cout and speed shift structure,other outstanding features as following mentioned.
Features:
HWX9000A
| SPECIFICATION | |
| Rated line pull | 9000 lbs (4082kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 9Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø21/64 “×95′ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) | Flow G/min (L/min) | Line speed ft/min(m/min) |
| 0(0) | 2.0(290.1) | 1.3(5) | 1.6(0.5) |
| 4000(1814) | 3.6(522.1) | 2.6(10) | 3.9(1.2) |
| 6000(2722) | 6.5(942.7) | 5.3(20) | 8.2(2.5) |
| 8000(3629) | 8.5(1232.8) | 9.2(35) | 14.1(4.3) |
| 9000(4082) | 9.0(1305.3) | 11.9(45) | 18.7(5.7) |
| Layer of cable | Rated line pull lbs(kgs) | Total rope on drum ft (m) | |
| 1 | 9000(4082) | 20.0(4.8) | |
| 2 | 7452(3380) | 44.3(11.1) | |
| 3 | 6358(2884) | 72.2(18.3) | |
| 4 | 5544(2515) | 95.1(29.0) |
| ITEM | HWX9000A | HWX9000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm ×217mm | 550mm×174mm ×270mm | |
| Net weight (Ibs) | 87.2 | 87.7 | |
| (kgs) | 40.5 | 40.7 |

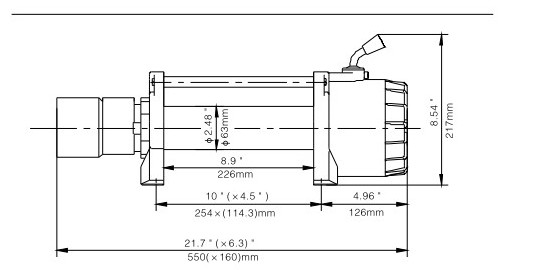

Overall Dimensions 21.6″ x 6.3″ x 8.54″
(L x W x H) 550mm x 160mm x 217mm
Net Weight 40.7 KGS
